DESCRIPTION

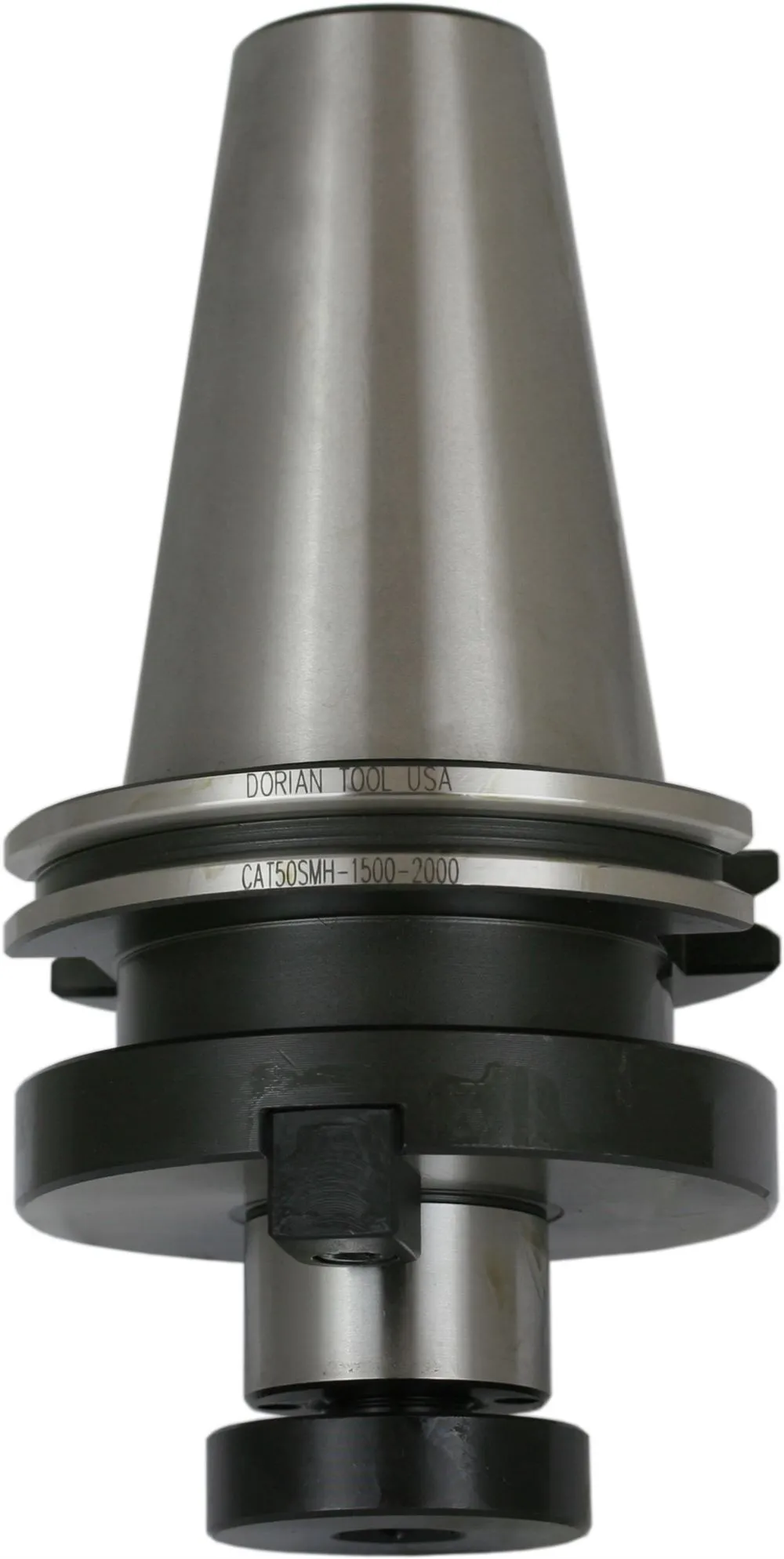

Dorian Tool Part Number: 733101-45150
Dorian Tool Shell Mill Holders are precision made in Italy. Balanced to 12,000 RPM these Shell Mill Holders/ Adapters are built for rigid shell milling applications. The Arbor has a H5 tolerance to create more contact with the mill.
- .0002" Taper-Arbor Runout Tolerance
- Made of 8620 Alloy Steel with Case Hardness of 56-60 HRC and Core Hardness of 36-40 HRC
- Tapers Ground to AT-3
- Made in Italy
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | DORIAN |
| Type: | Shell Mill Holder |
| Model: | CAT50 SMH-1500-2000 |
| Taper: | CAT50 |
| Arbor Diameter (in): | 1-1/2 |
| Arbor Length (in): | 0.94 |
| Arbor Thread: | 3/4-16 |
| Projection (in): | 2 |
| Thru Coolant: | No |
| Head Diameter (in): | 3.75 |
| Balanced To: | |
| Prop 65: | Yes |
| Country Of Origin: | ITALY |
