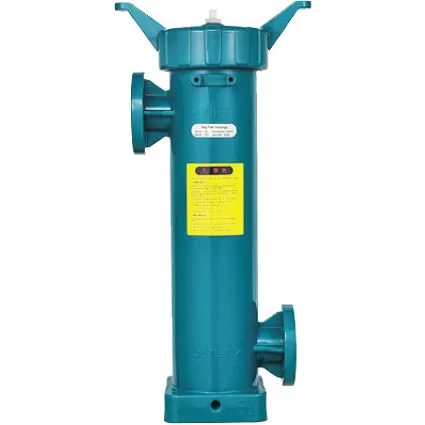

Commercial bag filter suitable for filtration.

Applications-
* Seawater filtration
* Waste water filtration
* Metal Working Fluids
* Chemical Processing
* Paints, Inks, Resins and Coatings
* Automotive
* Electronics
* Petrochemicals

Specifications-
Material of shell
PPH: Polyproplyene-Homo
PVDF: polyvinylidene difluoride

Bag Size-
#5: Φ6" x L20"(150 x 510mm)

Bag Microns-

1 micron, 5 micron, 10 micron, 25 micron, 50 micron & 100 micron

Design pressure-
87psi (6bar) in union fitting
150psi (10bar)

Inlet & Outlet-
Flange & Union fitting
Flow rates-
#5: 97gpm (22m3/h)

Max. operating temp.
PPH: 203℉ (95°C)

Model PTL-0105-
